Echo Cancellation and Echo Suppression: How Modern Devices Create Crystal-Clear Audio

Have you ever been on a conference call, only to hear your own voice echoing back at you? Or maybe you’ve struggled to understand a speaker because the room’s acoustics turned every word into a muddy reverberation. I’ve been there too, and it can feel frustrating—like you’re talking to yourself in a canyon. In this post, I’ll dive into the world of echo cancellation, showing you how modern devices are mastering the art of crystal-clear audio. Along the way, I’ll share tips, recommend gears, and even point out some hidden opportunities for internal linking if you’re using this on your own site.

Ready to stop the echo? Let’s get started.

Sources of Acoustic Echo

Acoustic echo happens when sound from your speaker leaks back into your microphone, making the far-end participant hear their own voice after a slight delay. Typically, echo lingers longer in a larger hall or conference room (tail lengths of around 400–600 milliseconds) as compared to a smaller office (tail lengths of around 200–300 milliseconds). The following is about the sources of acoustic echo from the coupling of speaker to microphone:

1. Direct path between the speaker and microphone, if any
2. Reflections from the surface where the VoIP phone is kept
3. Reflections from the walls and other objects/people around the VoIP enabled phone
4. Coupling of sound via the physical enclosure of the phone, in the form of vibrations from the chassis
5. Loopback modes in hardware audio codecs at the audio front end of the phone

Although headsets and handsets can also suffer echo, speakerphone mode remains the most pervasive and challenging, since the device broadcasts into the room rather than a sealed earpiece.

Different Echo Algorithms: Echo Cancellation vs. Echo Suppression

When it comes to removing echo, two main approaches dominate the market: echo suppression and echo cancellation.

Echo Suppression

• Assumption: Only one end speaks at a time (half-duplex).
• Mechanism: An echo suppressor simply detects whether the near end or the far end is talking, and closes the other path (like a switch).
• Pro: Simple and cost-effective; reduces network load.
• Con: Can clip overlap (double talk) and create unnatural pauses.

Echo Cancellation

• Assumption: Full-duplex communication; both sides can speak simultaneously.
• Mechanism: Builds a digital estimate of the echo by filtering the far-end signal, then subtracts that estimate from the microphone input.
• Modes of Deployment:
  • Far-end Cancellation: Phone 1 removes echo from Phone 2’s reflections, cleaning up the signal received locally.
  • Near-end Cancellation: Phone 1 removes its own speaker’s reflections so that Phone 2 never hears any echo.

The Evolution of Echo Cancellation

Acoustic echo cancellation (AEC) has come a long way— from bulky, test-tone-driven filters to sophisticated AI hybrids.

Early Attempts at Echo Cancellation

The initial idea of echo cancellation is to generate a synthetic replica of the echo and to subtract it from the return signal. In the 1960s, engineers measured a room’s impulse response by playing chirps or white noise, then synthesized a filter to match that response. Subtracting this “synthetic echo” removed most echoes—without disturbing live speech. Unfortunately, any change in the room (moving furniture, people shifting) required new test signals, interrupting calls.

Birth of the Adaptive Echo Canceller

John L. Kelly Jr., Benjamin F. Logan, and Man Mohan Sondhi at Bell Labs proposed using the far-end speech itself as a continuous “probe.” In 1966, they introduced the first adaptive echo canceller: a digital filter that tweaked its coefficients in real time to track the echo path—no pauses needed. Though initially costing about $1,500 per unit, this approach laid the groundwork for full-duplex telephony.

🔅Dive into our full-duplex technology guide to see how it works.

Commercial Breakthrough in the 1980s

Widespread AEC use waited until Duttweiler and Chen’s 1980 integrated-circuit design, packing hundreds of filter taps onto a single chip. By the late 1980s, PBX systems and telephone switches began shipping with built-in cancellers—and today, billions of channels rely on these tiny chips.

AI-Driven & Hybrid Models

Modern echo cancellers often blend classic adaptive filters with machine-learning models trained on large speech and room-acoustics datasets:

1. Deep-Neural Estimation: DNNs(Deep Neural Network) ingest the far-end signal plus a short window of recent mic audio to predict echo, achieving superior double-talk handling.
2. Hybrid Statistical-ML Pipelines: Classical Wiener or Kalman stages rapidly remove linear echo components; a compact neural net then tackles non-linear distortions from speaker clipping or chassis vibrations.
3. On-Device Real-Time Learning: Edge-optimized AI networks run directly on USB speakerphones, continuously fine-tuning echo estimates as doors open, lights switch on, or seating arrangements change.

The Increasing Demand of Future Echo Cancellation Market: AI-Supported Techniques

According to the 2025 report on Business Research Inghits, the global noise reduction and echo cancellation software market was valued at about USD 0.44 billion in 2024 and is projected to reach USD 1.1 billion by 2033 (CAGR ~11% 2025–2033). The surge is driven by:

• Remote Work & Virtual Events: Demand for seamless calls across home offices and hybrid workplaces.
• Smart Devices & IoT: More in-car, in-home, and wearable conferencing gadgets need onboard echo reduction.
• Healthcare & Education: Telemedicine and e-learning platforms require clear two-way audio.
• AI & Machine Learning: Vendors invest heavily in ML-powered AEC to differentiate product lines.

Meanwhile, the broader AI market is itself growing at ~26% per year, with nearly half of tech leaders fully integrating AI into core strategies by 2025. As echo cancellation becomes another “AI use case,” we’ll see richer, more personalized audio pipelines that adapt to each user’s voice, room, and speaking style.

Advanced Echo Cancellation Device Recommendations

Below are two top-tier conference speakerphones with built-in echo cancellation, noise reduction, and reverberation suppression. I’ve trimmed the specs, highlighted the AI innovations, and kept only the most critical lines to help you choose.

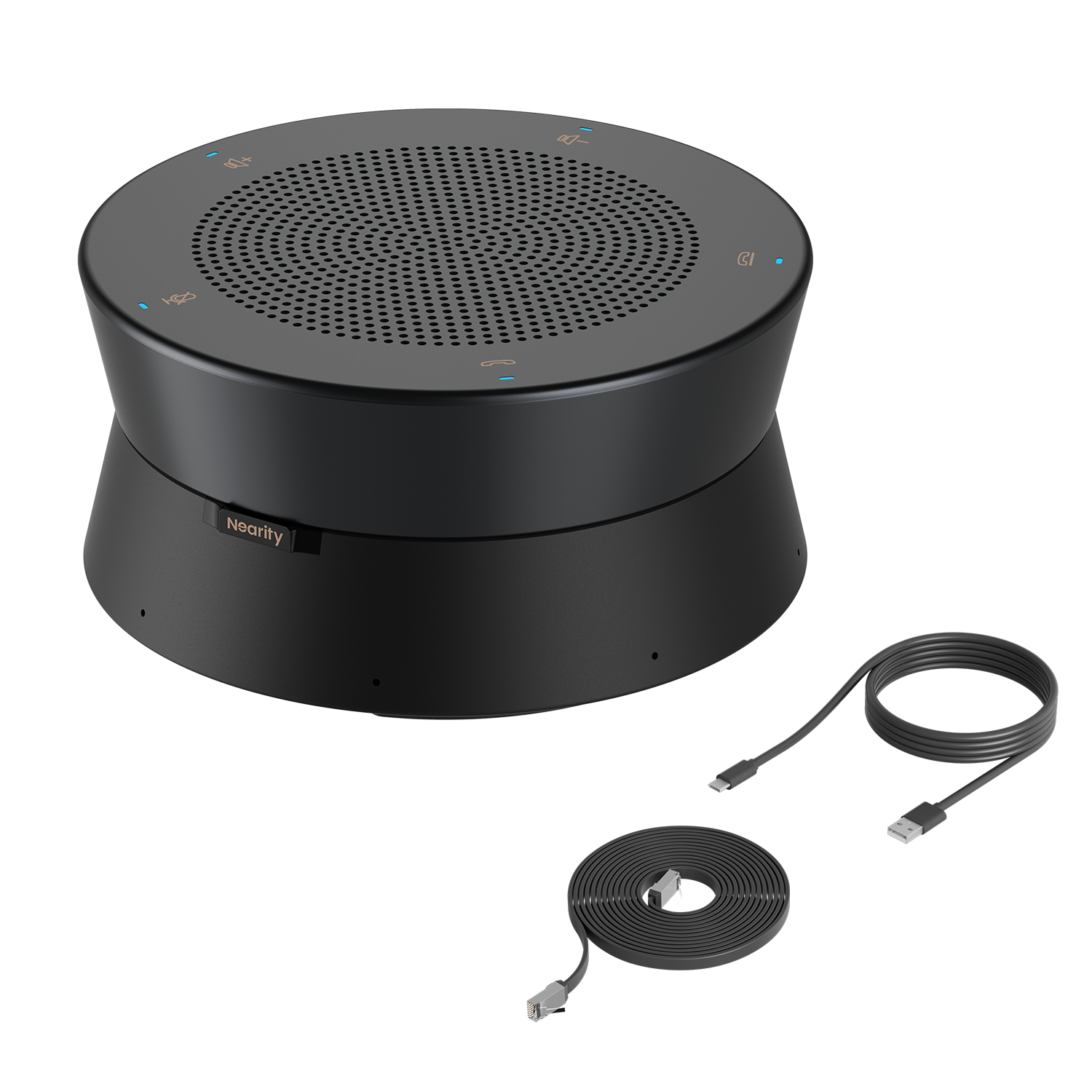

Nearity A20S – Scalable AI 1.0 Conference Speakerphone

• AI 1.0 Echo & Noise Cancellation: Proprietary algorithms remove echo, reverberation, and ambient noise without interrupting speech flow.
• Daisy-Chain Up to 6 Units: POE connectivity for rooms up to 30 people; stack multiple units for larger spaces.
• 8 MEMS Microphones, 5 m/16.5 ft Pickup: 360° coverage with AGC balancing volumes within a 16 ft radius.
• Seamless Integration: Plug-and-play on Windows, macOS, ChromeOS, Linux; compatible with Zoom, Teams, Meet, Webex.
• Compact Package: Includes speakerphone, USB & Ethernet cables, power adapter, and manual.

Nearity A21S – Zoom-Certified AI 2.0 Speakerphone

• AI 2.0 Echo & Noise Suppression: Next-gen algorithms for deeper echo reduction and smarter dereverberation.
• Native Zoom Rooms: Touch controls for mute/call directly within Zoom; also works with Teams, Meet, Webex.
• Expanded Daisy-Chain: Up to 4 units via POE, or up to 8 with additional injector—ideal for auditoriums.
• Wide OS Support: Instant plug-and-play on all major desktop platforms, no drivers.
• All-Inclusive Kit: Speakerphone, cables, adapter, user guide.

🔅For more gear, check our website for full conference audio equipment roundup.

Tips: Create a Better Sound in Every Conference

1. Optimize Mic & Speaker Placement: Keep speakerphones centered on the table, away from walls to minimize early reflections.
2. Use Acoustic Treatments: Place rugs, curtains, or foam panels to dampen hard surfaces and reduce reverberation.
3. Adjust Gain & Volume: Don’t max out speaker volume; lower levels reduce echo path energy.
4. Leverage Mute Strategically: Encourage participants to mute when not speaking to cut down background noise.
5. Regularly Update Firmware: Manufacturers push AEC and noise-suppression enhancements via firmware—keep devices current.

Learn More🚀

Conference Room Mics Guide 2025

Nearity Sonority Audio Ecosystem Guide 2025: Redefining the Audio Experience

Mastering Noise Cancellation: Your Ultimate Guide to Clearer Audio in Google Meet

Navigating the Hurdles of Meeting Audio: Background Noise, Bluetooth Woes, and Microphone Solutions

What’s the Best Speakerphone for Zoom Meetings? Top Picks for Every Room Size

Wrap Up🌼

Echo cancellation and echo suppression are the unsung heroes of modern remote collaboration. From the first open-loop filters to today’s AI-driven cancellers, each innovation brings us closer to face-to-face clarity over digital links. Whether you’re outfitting a small huddle room or a large auditorium, the right combination of hardware, algorithms, and room treatments can banish echo for good.
